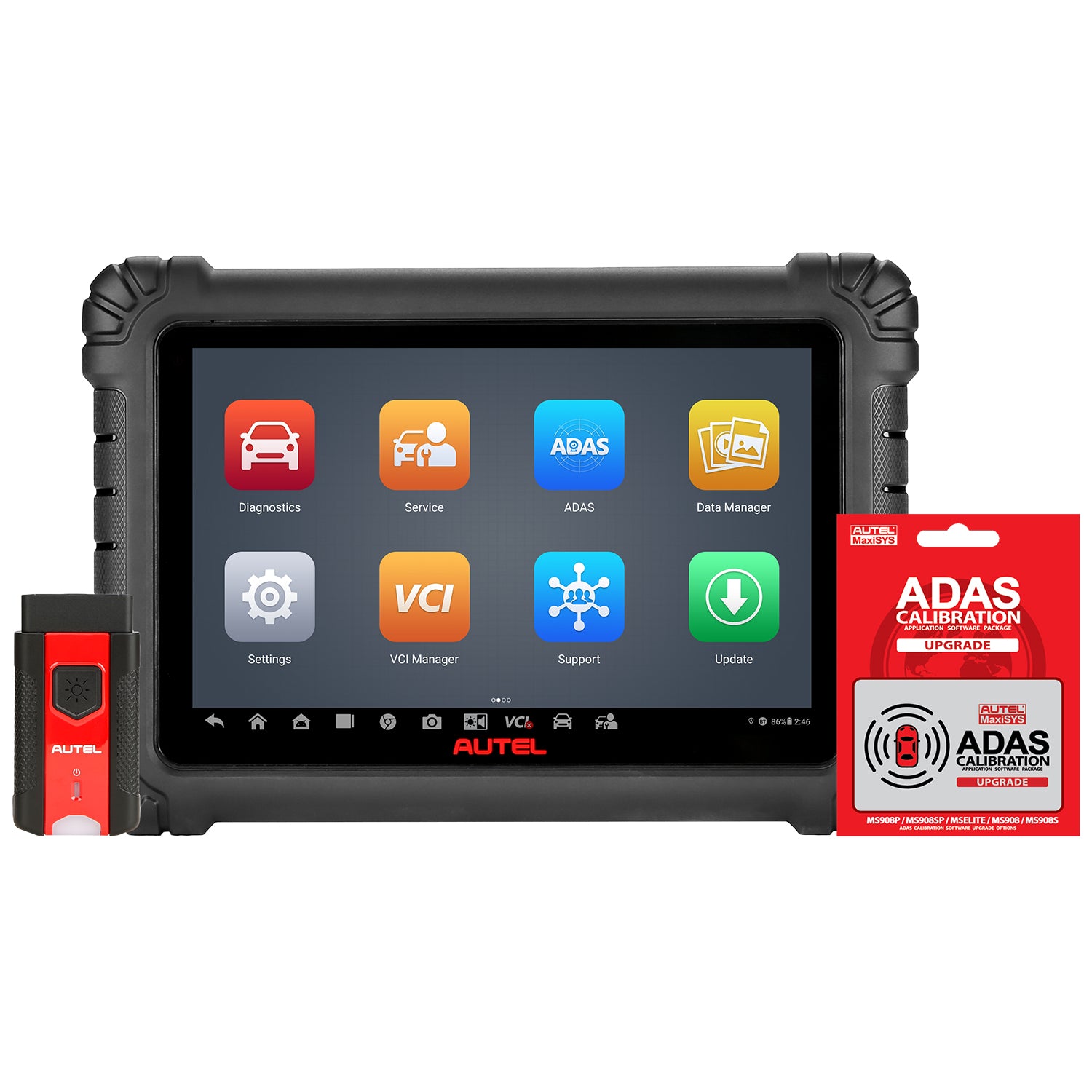

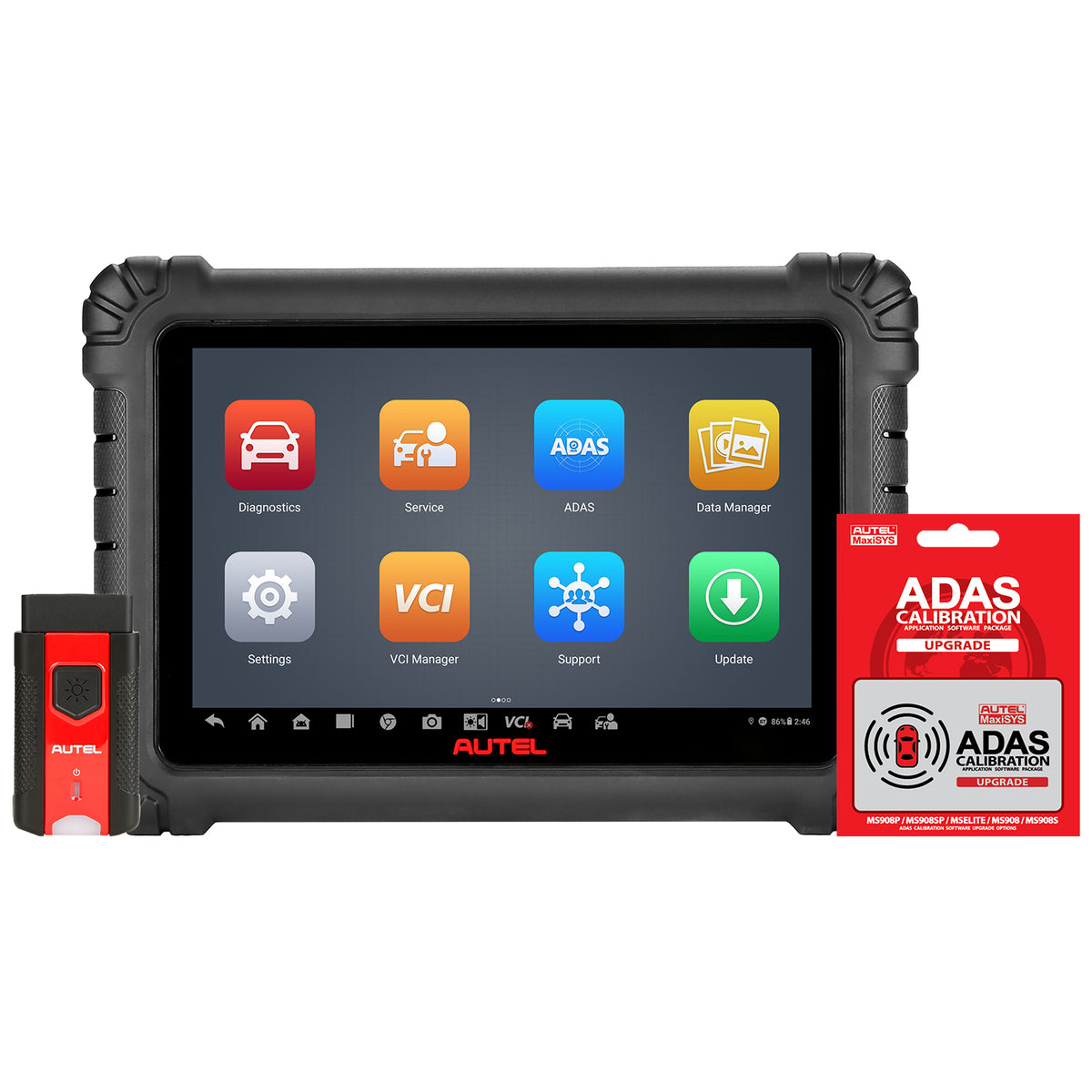

Autel MaxiSys MS906 Max ADAS Diagnostic Scan Tool

How the MaxiSYS MS906 MAX ADAS Fits Your Diagnostic Operation

The MaxiSYS MS906 MAX ADAS occupies a mid-tier position in the Autel tablet lineup, serving as the entry point for independent shops integrating ADAS calibration work alongside standard diagnostics without the investment required for the Ultra Series. It bridges the gap between basic code readers and high-end tools by combining full-system diagnostics with static and dynamic calibration capabilities. This tablet is built around the Bluetooth-enabled MaxiVCI V200 interface, which provides wireless protocol coverage for vehicles from 1996 onward, including support for CAN-FD and J2534 pass-through functions.

The MaxiVCI V200 connection means the tablet maintains a wireless link to the vehicle during a diagnostic session, allowing the technician to move freely around the lift or bay while monitoring live data or executing tests. This VCI supports the standard OBD-II protocols as well as manufacturer-specific communications required for in-depth system scans, bi-directional controls, and ECU coding. For shops that have been deferring ADAS work or subcontracting it, this model represents a practical on-ramp to bringing those services in-house, provided they acquire the necessary calibration frames and targets.

Using the MaxiSYS MS906 MAX ADAS on the Lift

When a vehicle rolls into the bay, the tablet's auto VIN detection connects via the MaxiVCI V200 and immediately presents a topology map of the vehicle's network, showing module communication status. A technician troubleshooting a module-not-communicating fault uses this map to isolate the problem node before running a full system scan. The live data graphing function can be displayed alongside the repair information database, allowing for real-time parameter comparison against specifications while the vehicle is running or during an active test.

Following a module replacement, the technician navigates to the advanced coding menu to perform ECU coding and adaptations directly through the tablet's interface, using the J2534 pass-through capability of the VCI when required for flash programming. The tablet's 40-plus service reset functions are accessed from the same unified menu, turning off maintenance lights and resetting adaptations after oil service, brake jobs, or battery replacements. For ADAS work, the software guides the setup of the required calibration frame, whether using the Autel Standard system or the MA600 mobile frame, and leads the technician through the static or dynamic calibration procedure for cameras, radar, or lidar.

Which Shops Get the Most From the MaxiSYS MS906 MAX ADAS

This tablet is engineered for the independent repair shop or mobile technician who has reached the limit of a basic scan tool and needs reliable bi-directional control, ECU coding, and ADAS calibration capability without the cost of a full flagship system. It fits operations that regularly perform module replacements, reset adaptations, and are now facing the industry mandate to handle post-collision or windshield replacement calibrations. The wireless operation and integrated ADAS software make it equally viable for a dedicated ADAS calibration bay within a larger shop or for a mobile technician working out of a service vehicle.

The combination of full-system diagnostics and calibration software in a single mid-tier tool prevents the need for multiple dedicated devices. It is less suited for shops requiring integrated oscilloscope functions or advanced network diagnostics beyond topology mapping, which are reserved for higher-tier models. For the shop adding ADAS services to its menu, this tablet provides the necessary software foundation, requiring only the separate purchase of the physical calibration frames and targets to become operational.
