Autel MaxiSys MS909S2 Diagnostic Scan Tool

How the MaxiSYS MS909S2 Fits Your Diagnostic Operation

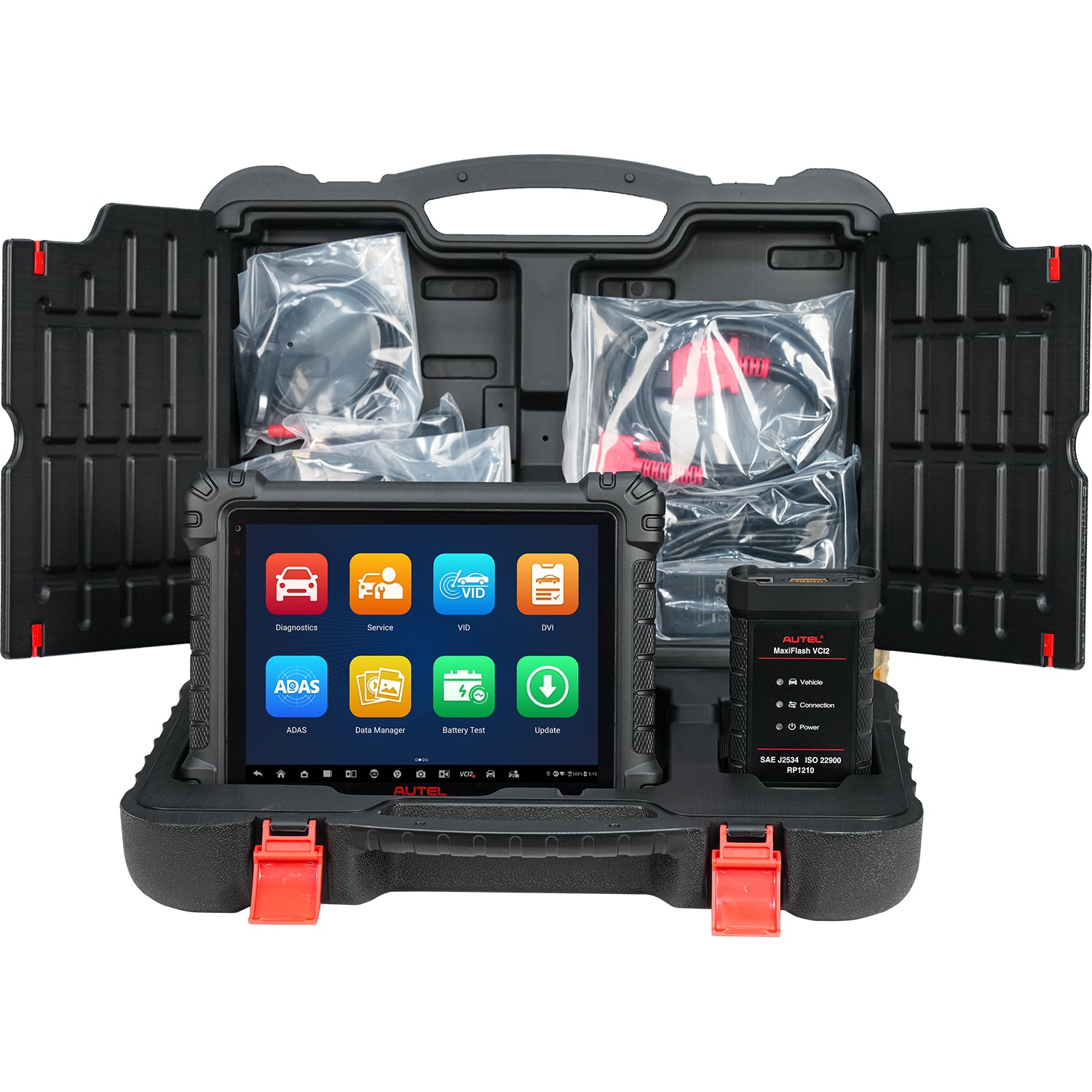

The MaxiSYS MS909S2 occupies the entry point of Autel's flagship Ultra Series S2 lineup, designed for shops requiring full-system diagnostics, bi-directional control, and ECU coding on a daily basis. It replaces the previous MS909 with upgraded hardware, including an 11-inch Android 13 tablet with 256GB storage, and introduces Topology 3.0 network analysis. This tablet connects wirelessly to the included MaxiFlash VCI2, a J2534 pass-thru device that supports the CAN-FD and DoIP protocols required for communication with late-model vehicle gateways and high-speed control modules.

The wireless MaxiFlash VCI2 connection means the tablet can be used freely around the vehicle or shop without a tether, while the VCI itself handles the complex protocol translation. This setup provides the necessary coverage for 1996 and newer domestic, Asian, and European vehicles, with the processing power to manage the data flow from multiple vehicle networks simultaneously. For technicians, this translates to a tool capable of handling everything from basic code reading to advanced security access and module programming, forming a core diagnostic platform for a general repair or specialty shop.

Using the MaxiSYS MS909S2 on the Lift

When a vehicle with a communication fault rolls in, the technician connects the MaxiFlash VCI2 and launches a diagnostic session. The tablet's Topology 3.0 software automatically maps the vehicle's network, displaying all modules and their communication status. A module showing as offline or with a U-code can be pinged directly from the topology map to verify physical layer connectivity, separating network issues from module failures before any parts are ordered. Live Data from multiple systems can be viewed on a split screen, with enhanced visualization tools allowing for parameter graphing and reference sampling to compare sensor values against known good waveforms.

Following a module replacement, the technician uses the same tool for the entire repair sequence. After diagnosing the fault and replacing the part, the security gateway access for authorized brands like Mercedes-Benz or Stellantis is invoked to perform ECU coding and adaptations directly through the tablet interface. For other makes, the J2534 pass-thru capability of the MaxiFlash VCI2 allows the technician to use third-party programming software. Post-repair, the 45-plus one-tap service reset functions are accessed to complete jobs like oil light resets, EPB retractions, or steering angle sensor calibrations, finalizing the repair without switching tools.

Which Shops Get the Most From the MaxiSYS MS909S2

Independent repair facilities that regularly perform module replacements and need reliable security gateway access for European and domestic vehicles will find the MS909S2's authorization for Mercedes-Benz, Nissan, VW/Audi, and Stellantis critical. The combination of full-system diagnostics, bi-directional controls, and ECU coding supports the complex repair workflows these shops encounter daily. The wireless VCI and tablet form factor also suit mobile technicians or shops with multiple bays, allowing the diagnostic computer to move with the technician rather than being anchored to a cart or bench.

Shops aiming to expand their service offerings into areas like digital vehicle inspections or ADAS calibrations will use the MS909S2 as a capable foundation. The integrated MAX application facilitates multipoint digital inspections directly from the tablet, while the platform is ADAS calibration-ready with a corresponding software upgrade and target kit. This makes the tool a central hub for both foundational diagnostics and revenue-generating advanced services, avoiding the need for multiple single-function devices.
