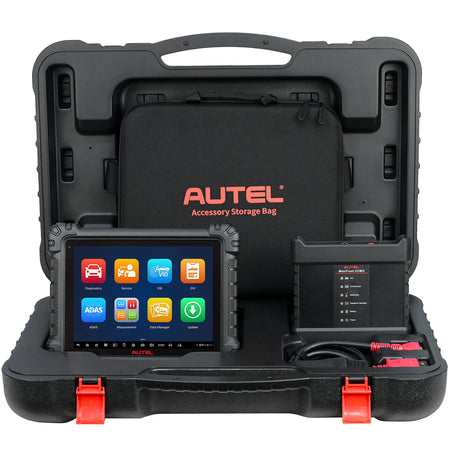

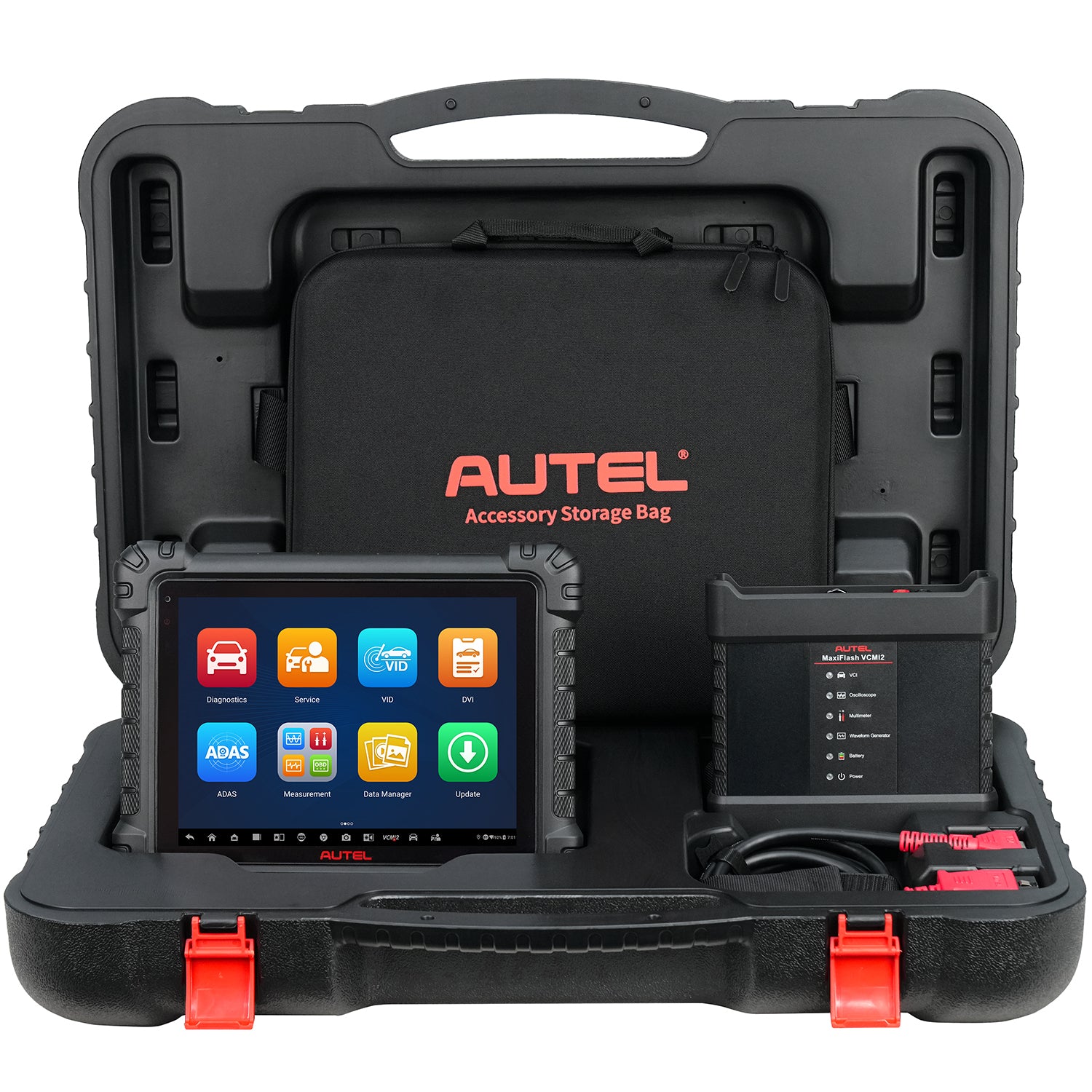

Autel MaxiSys MS919S2 Diagnostic Scan Tool

How the MaxiSYS MS919S2 Fits Your Diagnostic Operation

The MaxiSYS MS919S2 occupies the flagship position in Autel's Ultra Series S2 lineup, designed for shops where diagnostic depth and vehicle system access are non-negotiable. This tier of tool handles the full spectrum of professional work, from reading codes on a 1996 OBD2 vehicle to performing ECU coding on a late-model European car with a secured gateway. Its core is the MaxiFlash VCMI2, a wireless 6-in-1 vehicle communication interface that provides the protocol coverage necessary for this work, including CAN-FD and DoIP support for the latest vehicle networks.

Connecting via the MaxiFlash VCMI2 means the tablet communicates wirelessly with the vehicle, allowing a technician to move freely around the lift or bay while maintaining a diagnostic link. This VCI's multi-protocol foundation ensures connectivity across 80-plus vehicle makes, from domestic to Asian and European models. For operations requiring security authentication, the MS919S2 holds authorizations for brands like Mercedes-Benz, Nissan, VW/Audi, and Stellantis, granting access where many other tools stop. The inclusion of J2534 pass-thru capability formalizes its role in official ECU flash programming workflows.

In practice, this translates to a tool that doesn't just read data but actively interrogates and commands vehicle systems. The hardware platform-an 11-inch tablet with 256 GB of storage and a high-performance octa-core processor-supports the intensive data processing and visualization required for advanced diagnostics. It is built for the technician who needs to see a topology map of a vehicle's entire network one moment and graph live data against a generated waveform the next.

Using the MaxiSYS MS919S2 on the Lift

When a vehicle rolls into the bay, the MS919S2 with its MaxiFlash VCMI2 typically connects via Bluetooth or Wi-Fi. The tool automatically detects the VIN and presents the option for a full-system scan. As the scan runs, the technician can watch the Topology 3.0 interface populate in real time, visually mapping every module on the vehicle's CAN and LIN networks. This immediate system-wide view is crucial for diagnosing communication faults; a non-responding module is instantly apparent on the map, and the technician can use the integrated ping function to test that module's physical connection directly from the tablet.

Following a scan, the work often moves to live data analysis. The technician can split the 11-inch screen, placing a list of relevant PIDs on one side and a four-channel oscilloscope view on the other. This allows for correlating sensor readings, like a camshaft position signal, directly with its electrical waveform. For driveability concerns, the Live Data Fusion and Reference Sampling tools let the tech compare current parameter graphs against known-good captures. When a faulty component is identified, bi-directional control enables active tests-activating a solenoid, cycling a pump, or testing an injector-to confirm the diagnosis without leaving the driver's seat.

After replacing a control module, the advanced coding functions come into play. The technician navigates to the appropriate system, connects via the J2534 pass-thru or the tool's native programming routines, and performs the necessary ECU coding or adaptations. For routine service work, over 45 reset functions-from oil service lights to brake pad wear indicators-are accessible through a dedicated menu, streamlining the final steps before the vehicle is returned. Throughout this process, the integrated MOTOR TruSpeed repair information can be referenced for specifications and procedures without switching devices.

Which Shops Get the Most From the MaxiSYS MS919S2

The MS919S2 earns its place in independent repair facilities that regularly confront complex network diagnostics, module programming, and European vehicle security systems. Shops that perform ECU replacements on late-model Audi, Mercedes-Benz, or Stellantis vehicles require the gateway access and J2534 support this tablet provides. Similarly, operations that have expanded into ADAS calibration will utilize the platform's capability to integrate with target kits and run calibration software, making it a central hub for both diagnostics and recalibration.

This tool is also a fit for mobile technicians and smaller shops where space is at a premium, as the wireless MaxiFlash VCMI2 eliminates cable clutter and the tablet itself serves as a full-featured oscilloscope and multimeter. The combination of Topology 3.0 for electrical system analysis and the built-in measurement tools makes it particularly valuable for diagnosing intermittent network faults or sensor issues that demand waveform analysis. In essence, any professional operation where diagnostic conclusions must be reached through direct system interrogation and validation, rather than code reading alone, will leverage the full capability of the MS919S2.
