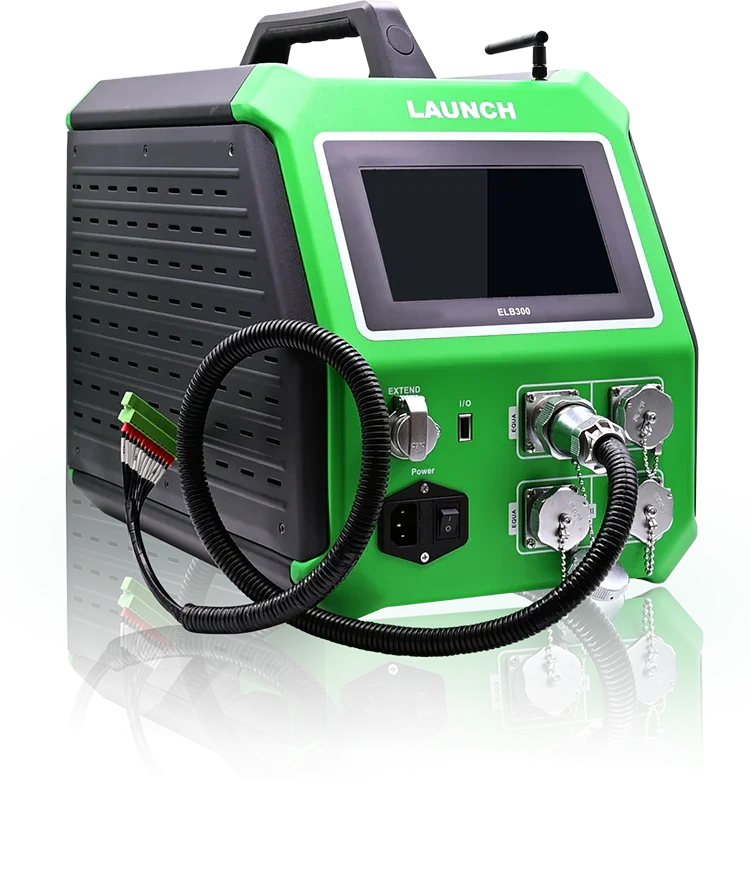

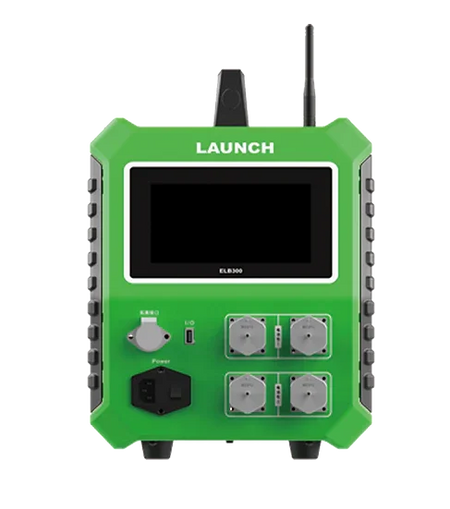

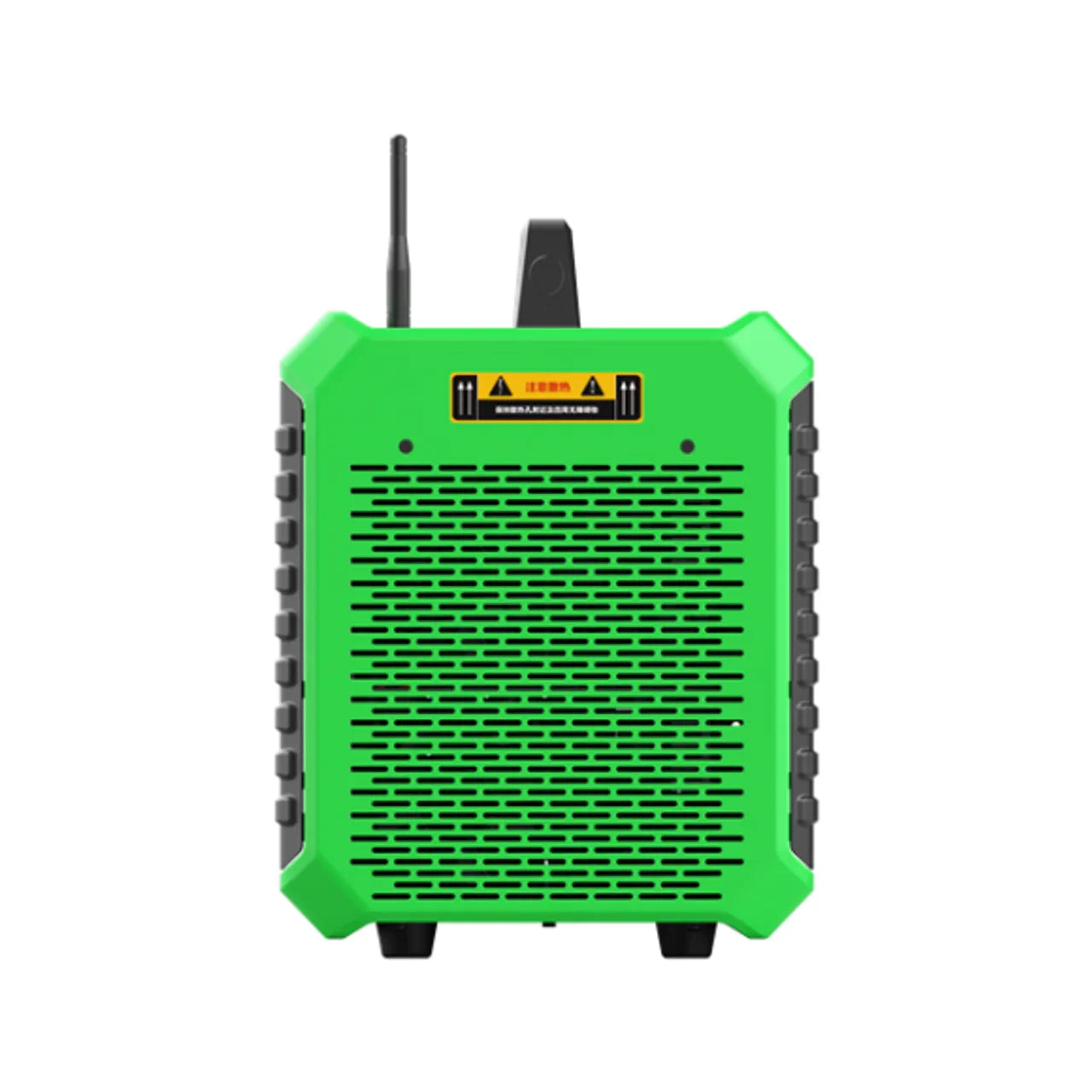

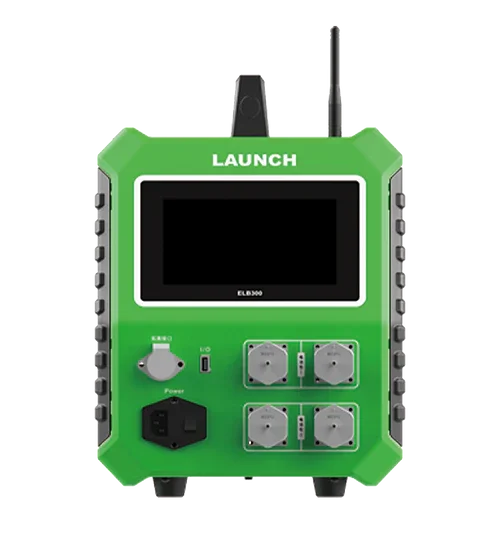

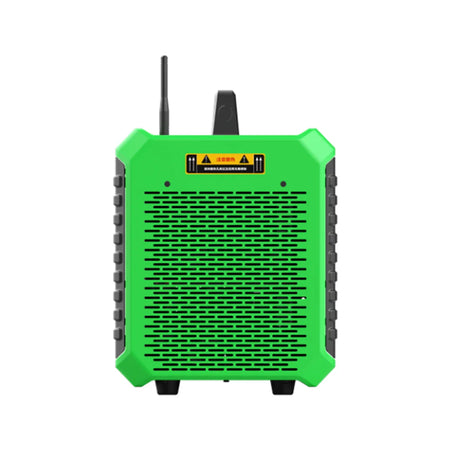

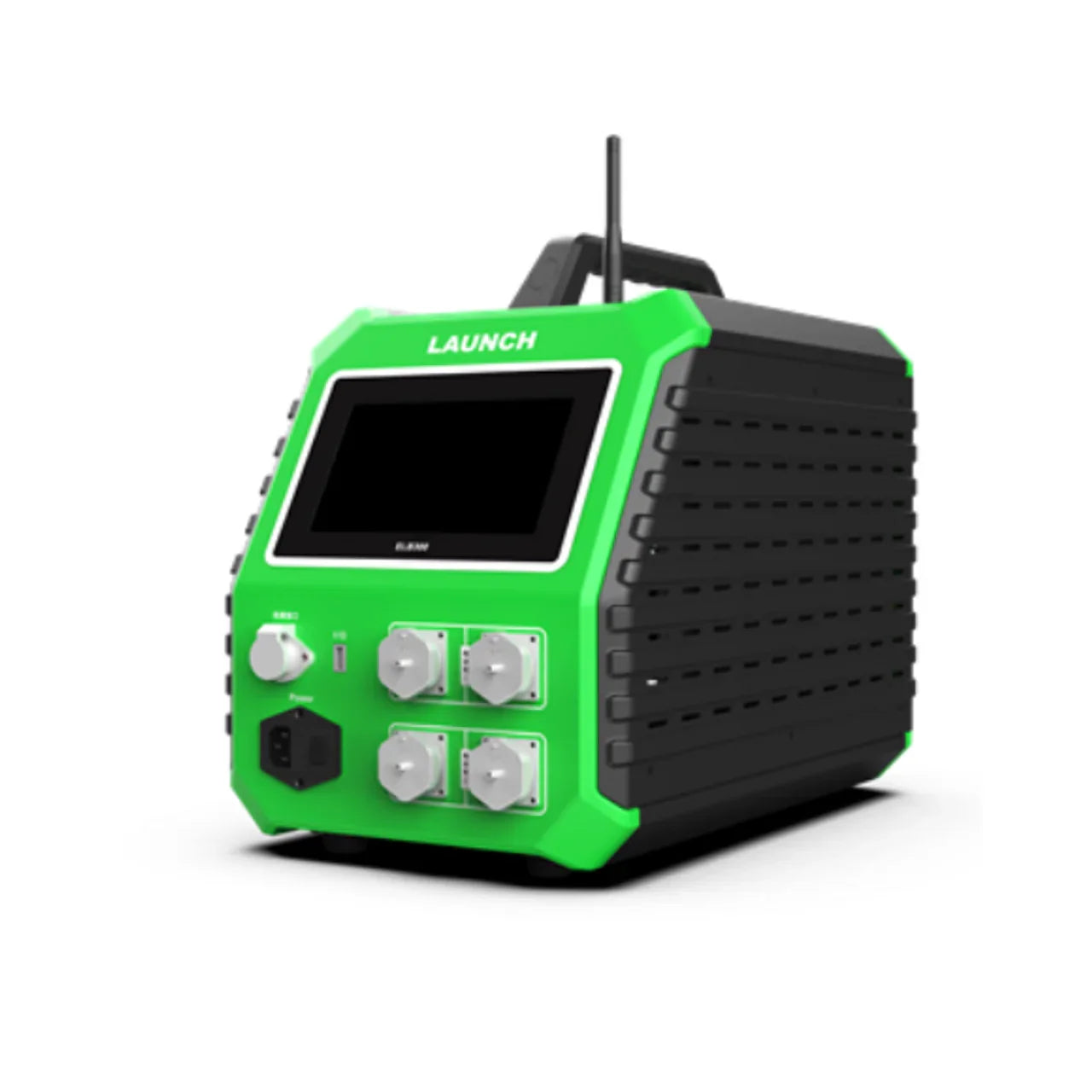

EV Lithium Battery Pack Cell Equalizer (24 Channels)
Couldn't load pickup availability
Our team uses these tools in real shops. Questions about compatibility, software activation, or whether this is the right fit for your workflow — call, email, or book a free video consult.
Ask an expert
ELB300 is designed for new energy batteries such as lithium iron phosphate, ternary lithium and lithium manganate, and can quickly solve the cruising range degradation caused by the difference in cell capacity due to inconsistent cell voltage.
EV BATTERY CELL EQUALISER
Our high-voltage battery cell equalizer is an extremely useful tool that allows you to test, charge and discharge individual cells. It offers you the possibility to bring the voltages of all cells to a uniform level.
SAFE CHARGING AND DISCHARGING
OVERCHARGE AND DISCHARGE PROTECTION
INTELLIGENT CELL CHECK
Uniform charging or discharging of the cells
Overcharge or over-discharge
Effectively prevents overcharging or over-discharging of any cell in the HV module.
Charge and discharge equalization
Independent channel design that detects and uniformly charges or discharges the cells in the module. When charging or discharging, it ensures that no cell in the module is overcharged or over-discharged.
Safety protection function
Protection against overvoltage, undervoltage, overcurrent, short circuit and reverse polarity protection.
Equilibrium maintenance present
The balance maintenance parameters can be set as required. This allows the balance to be quickly maintained according to the current parameters.

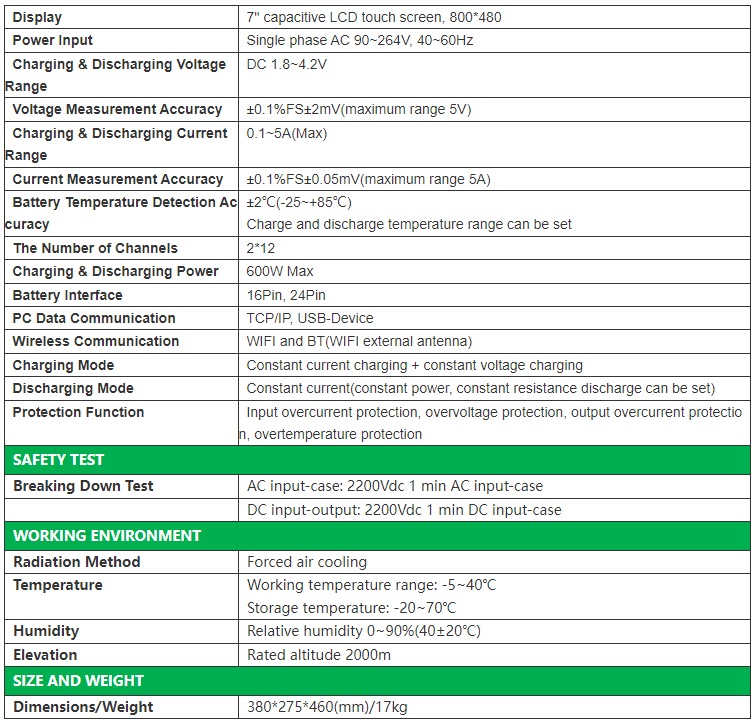

Technical Profile
Battery Interface
16 Pin, 24 Pin
Channels
2 x 12
Module
2 modules, 12 battery strings
Charging Mode / Discharging Mode
Constant current + voltage charging
Constant current + voltage discharge
Communication
USB, WLAN, Bluetooth
