Autel CSC1004-01 VW 360° Around View Monitor (AVM) System Pattern

Product Overview

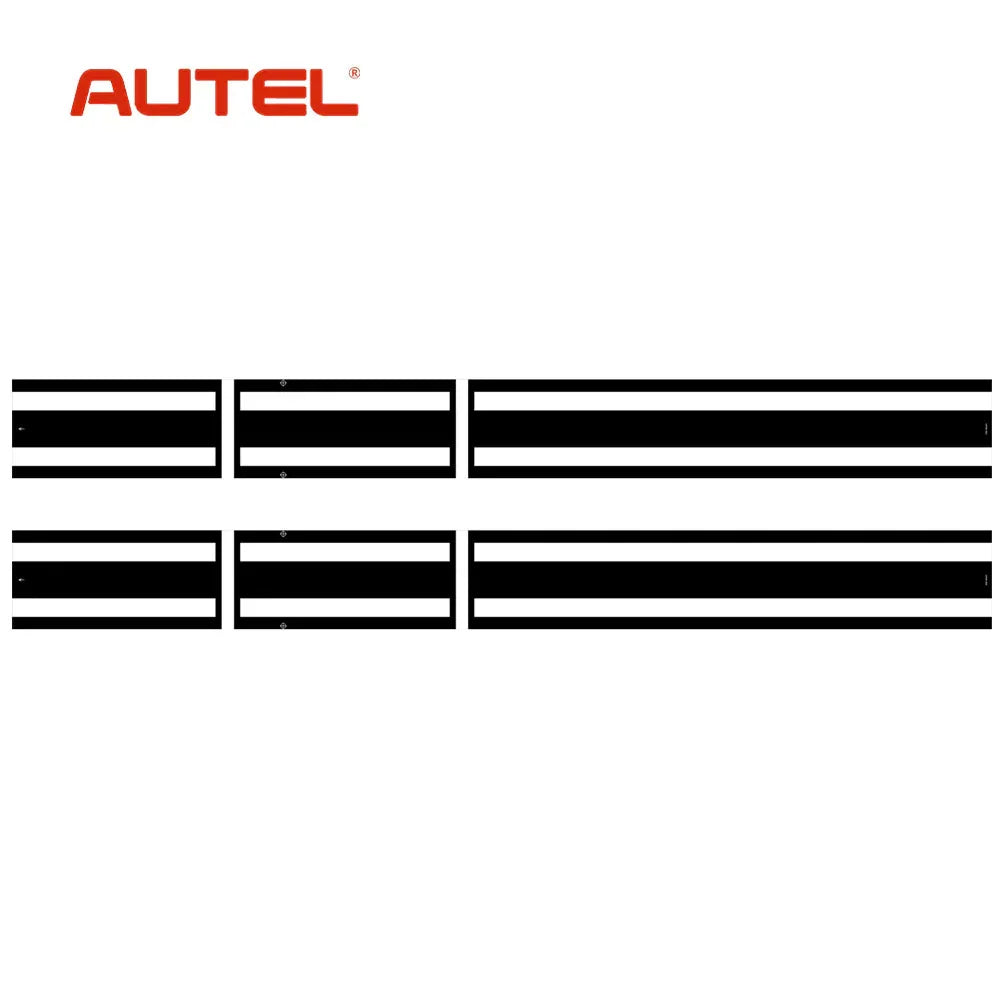

The Autel CSC1004-01 Volkswagen 360° Around View Monitor (AVM) Pattern Package is an OEM-style ADAS calibration target designed for professional calibration of supported Volkswagen surround-view camera systems. When paired with a compatible Autel ADAS Calibration Frame and an Autel MaxiSYS tablet with ADAS software, this target helps restore proper camera alignment after repairs or component replacement.

Modern Volkswagen vehicles rely on multiple cameras working together to create a seamless bird's-eye view around the vehicle. If one or more cameras are removed, replaced, or their position changes, calibration is often required to ensure the system continues to operate as intended.

The CSC1004-01 pattern package is engineered specifically for Volkswagen AVM calibration procedures, making it an essential tool for collision repair facilities, auto glass shops, dealerships, and ADAS calibration specialists.

Key Features

• Designed specifically for supported Volkswagen 360° Around View Monitor (AVM) systems
• Used during static ADAS camera calibration procedures
• OEM-style calibration pattern for precise camera alignment
• Durable, reusable construction for repeated shop use
• Works with compatible Autel ADAS Calibration Frames
• Compatible with Autel MaxiSYS tablets equipped with licensed ADAS software
• Helps restore proper surround-view camera operation after repairs
• Professional-grade equipment for ADAS calibration facilities

Common Calibration Scenarios

Calibration may be required after:

• Windshield replacement
• Side mirror replacement
• Front or rear collision repairs
• Bumper removal or replacement
• Camera replacement
• Suspension or steering repairs when specified by the manufacturer
• Wheel alignment procedures on applicable vehicles

Always follow the vehicle manufacturer's repair procedures and the calibration workflow provided within the Autel software.

Why Proper AVM Calibration Matters

Volkswagen's Around View Monitor combines images from multiple cameras to create a real-time overhead view of the vehicle. If those cameras aren't accurately aligned, the stitched image can become distorted or misrepresent the vehicle's surroundings.

Using the correct Volkswagen-specific calibration target helps ensure the cameras are properly referenced during calibration, allowing the system to deliver the accuracy it was designed to provide.

Compatibility

The CSC1004-01 is intended for use with compatible Autel ADAS calibration equipment, including:

• Autel Standard ADAS Calibration Frame
• Autel IA900 Series
• Autel IA1000 Series
• Compatible Autel MaxiSYS tablets with licensed ADAS Calibration software

Vehicle coverage depends on model year, trim level, and factory-installed ADAS options. Always verify coverage using your Autel software before beginning calibration.

What's Included

• (1) Autel CSC1004-01 Volkswagen 360° AVM Pattern Package

Calibration frame, diagnostic tablet, software subscriptions, and additional accessories are sold separately.

Specifications

Manufacturer: Autel

Part Number: CSC1004-01

Application: Volkswagen 360° Around View Monitor (AVM) Calibration

Calibration Type: Static Camera Calibration

Vehicle Coverage: Supported Volkswagen models equipped with factory AVM systems

Reuse: Yes

Warranty: Autel Limited Warranty

Ideal For

• Collision Repair Centers
• Auto Glass Shops
• ADAS Calibration Specialists
• European Repair Facilities
• Volkswagen Service Centers
• Professional Automotive Technicians
