- ADAS calibration frame with low base, 360° rotating wheels
- Foldable, detachable into arm, column, base
- Gearbox tested 1,500 lift cycles; arms 5,000 folds; screws 3,000 stress tests
- 5-line laser and cross-line laser alignment
- ±2" (50 mm) lateral fine-tuning adjustment
- European targets: VW/Audi, Mercedes, Porsche, Renault, Volvo

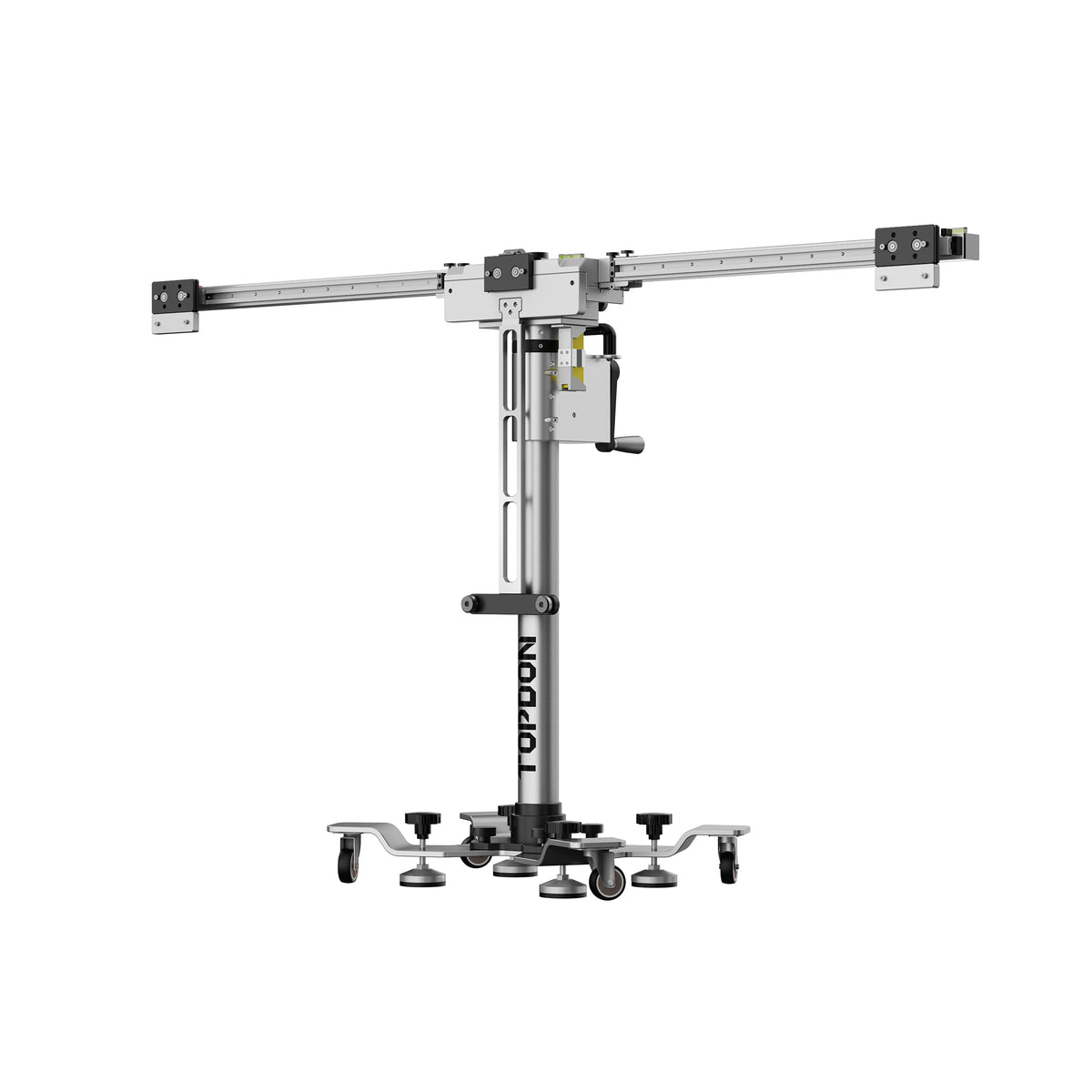

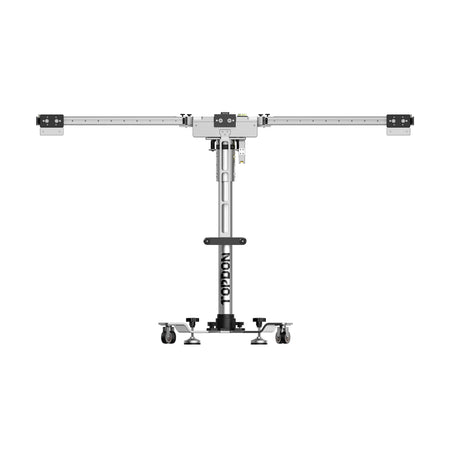

The Phoenix ADAS Mobile Euro Package is TOPDON's European-coverage calibration package. It pairs the Phoenix ADAS Mobile frame and laser alignment set with the full LDW target set, ACC radar targets, and the camera, night vision, lidar, and radar-level fixtures for VW/Audi, Mercedes-Benz, Porsche, Renault, and Volvo platforms. Calibration runs from a TOPDON Phoenix Series diagnostic scan tool with step-by-step guidance; the scan tool is sold separately and not included in this package.
Features & Benefits

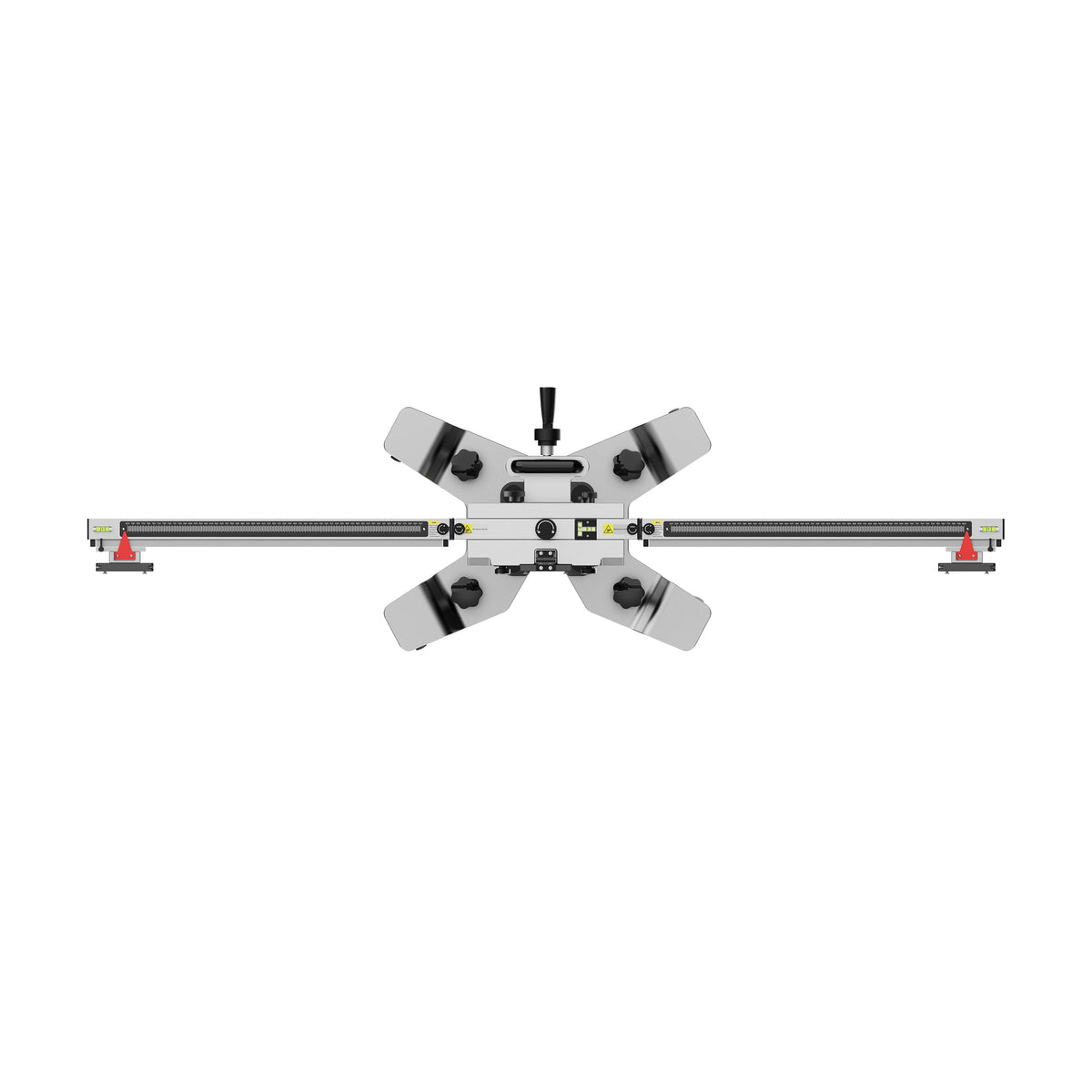

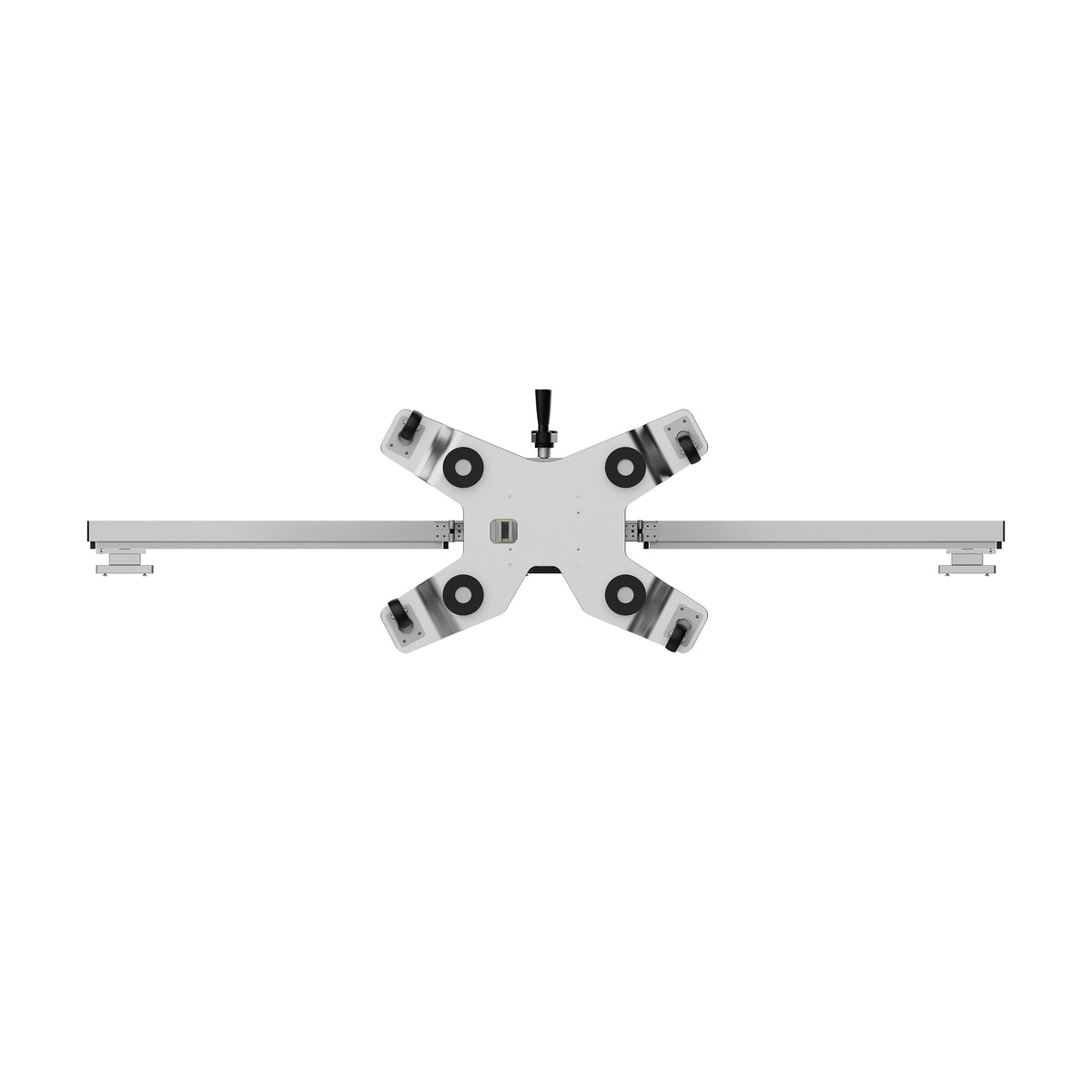

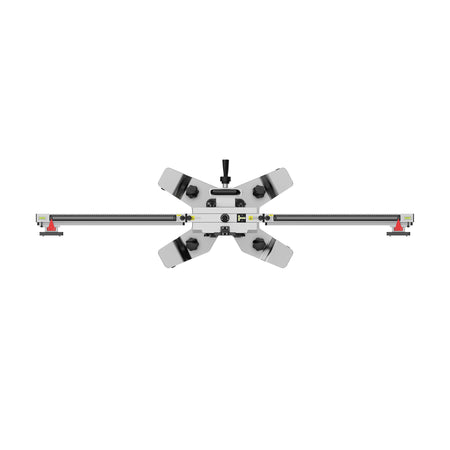

- Low Base, 360° Casters The low base sets height and level quickly and fits beneath the vehicle chassis. 360° rotating wheels position the frame in tight bays.

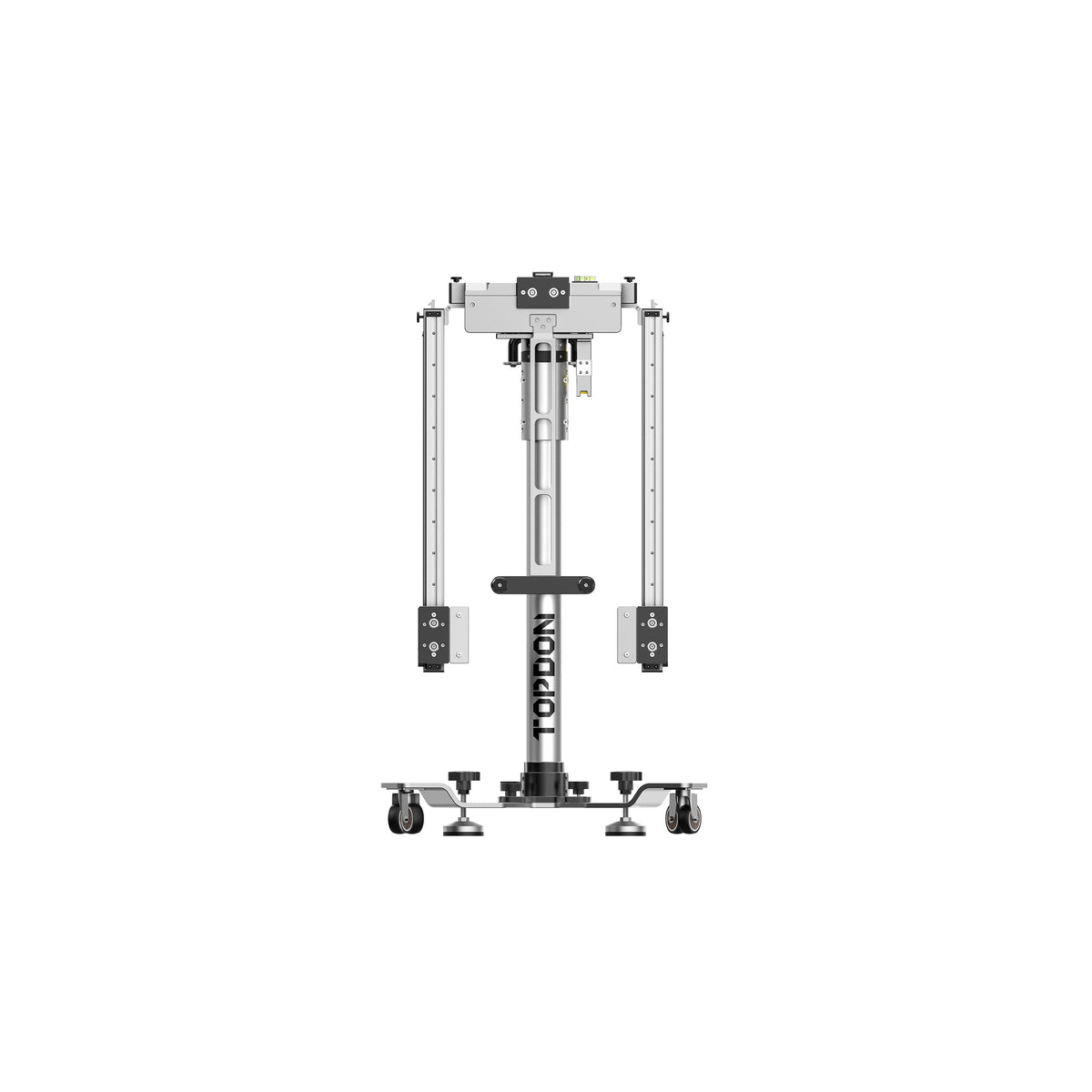

- Folds Into Three Parts Arm, column, and base separate for transport and fit in a car trunk for mobile calibration work.
- Durability Tested Gearbox tested to 1,500 extreme lift cycles, folding arms to 5,000 folds, and screws to 3,000 stress tests.
- Laser Alignment The 5-line laser locates the vehicle centerline and reference points. The cross-line laser places the calibration frame.
- Fine-Tuning at the Frame ±50 mm (±2 in) lateral adjustment plus angle adjustment by knob, without moving the whole frame.
- System Coverage Lane Departure Warning, Adaptive Cruise Control, Blind Spot Detection, Around View Monitor, Night Vision, Rear Collision Warning, and lidar.
- Guided Calibration With a TOPDON Phoenix Series scan tool, each calibration is laid out step by step with illustrations and real-time guidance. Coverage spans over 40 vehicle brands and expands with software updates.
What's in the Package
Frame and Alignment

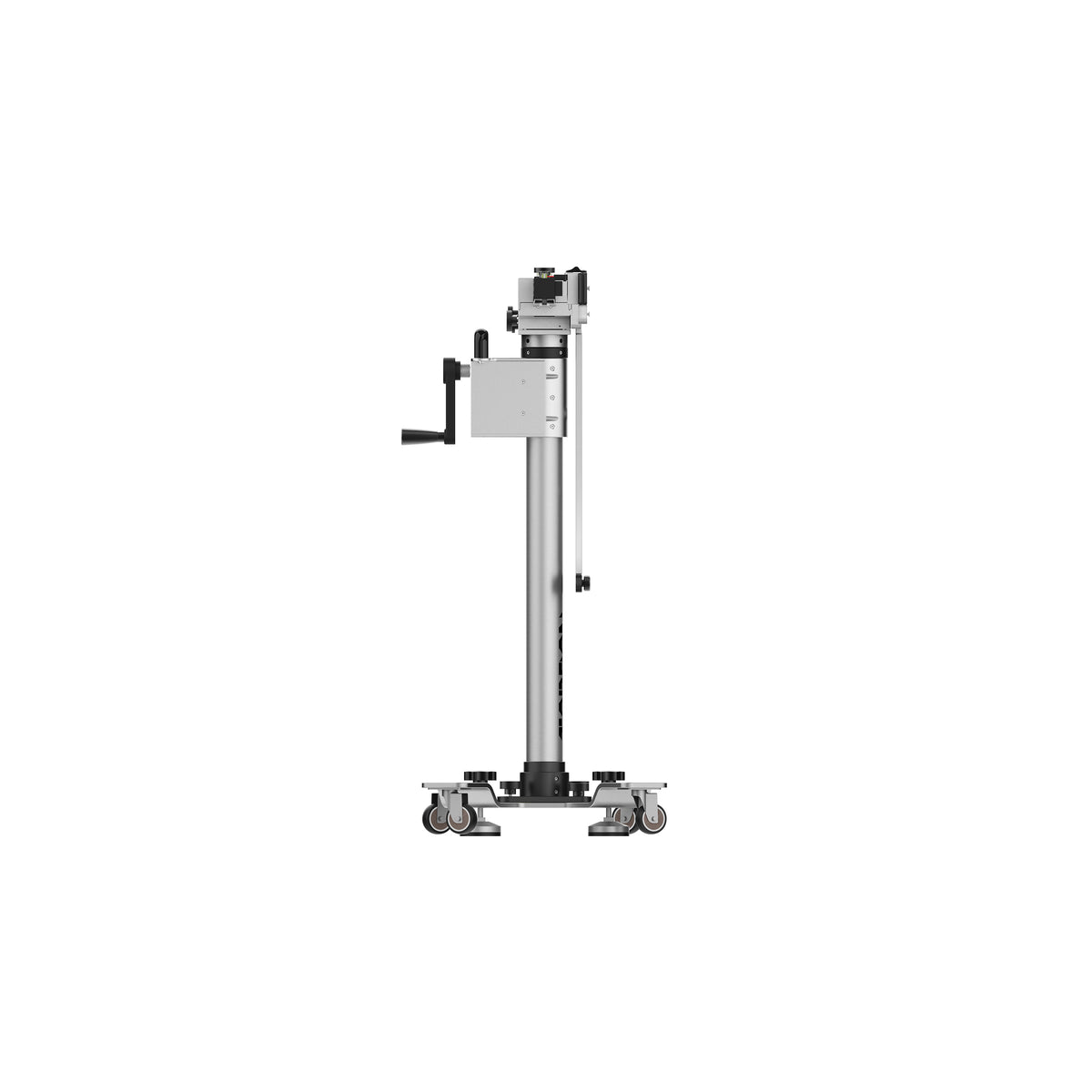

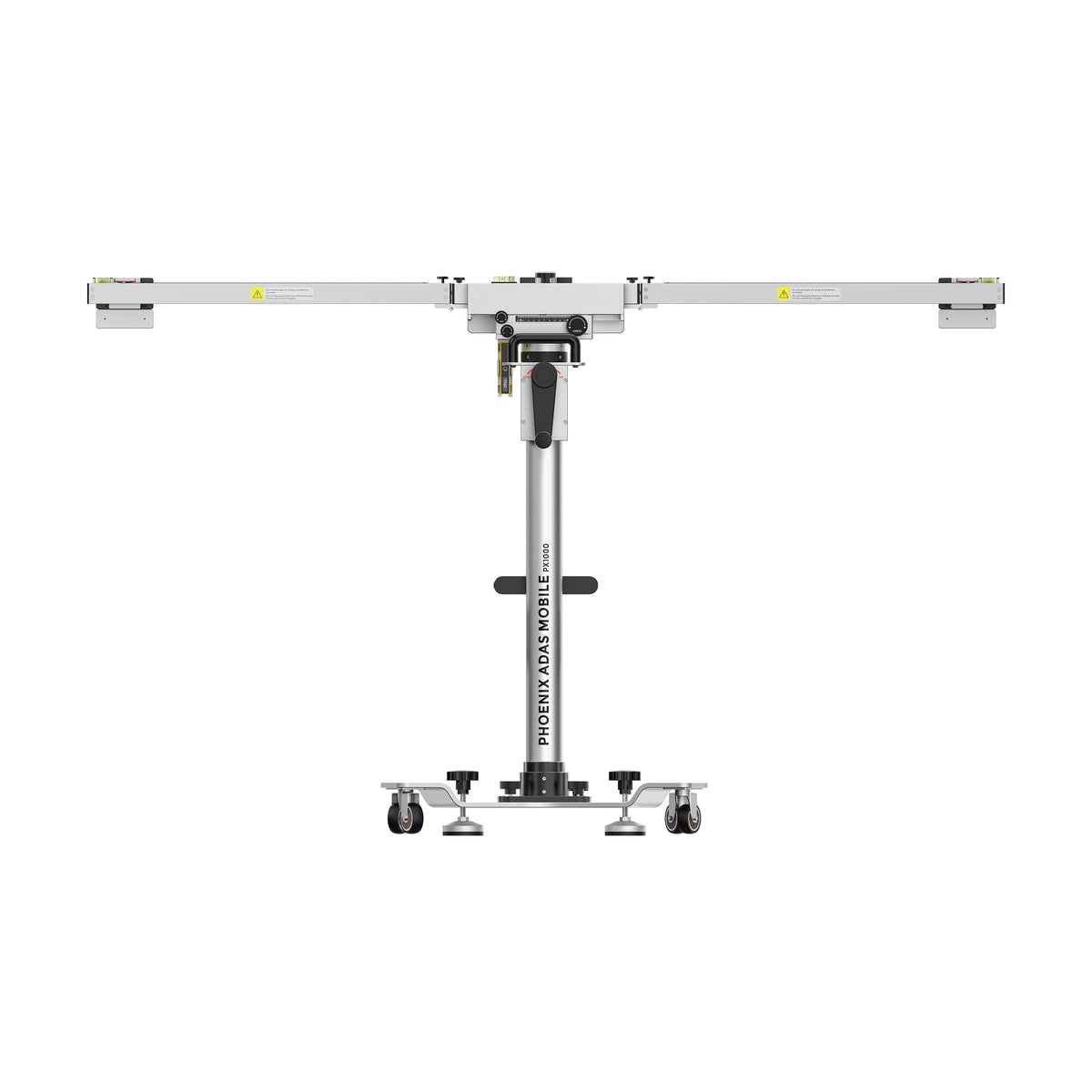

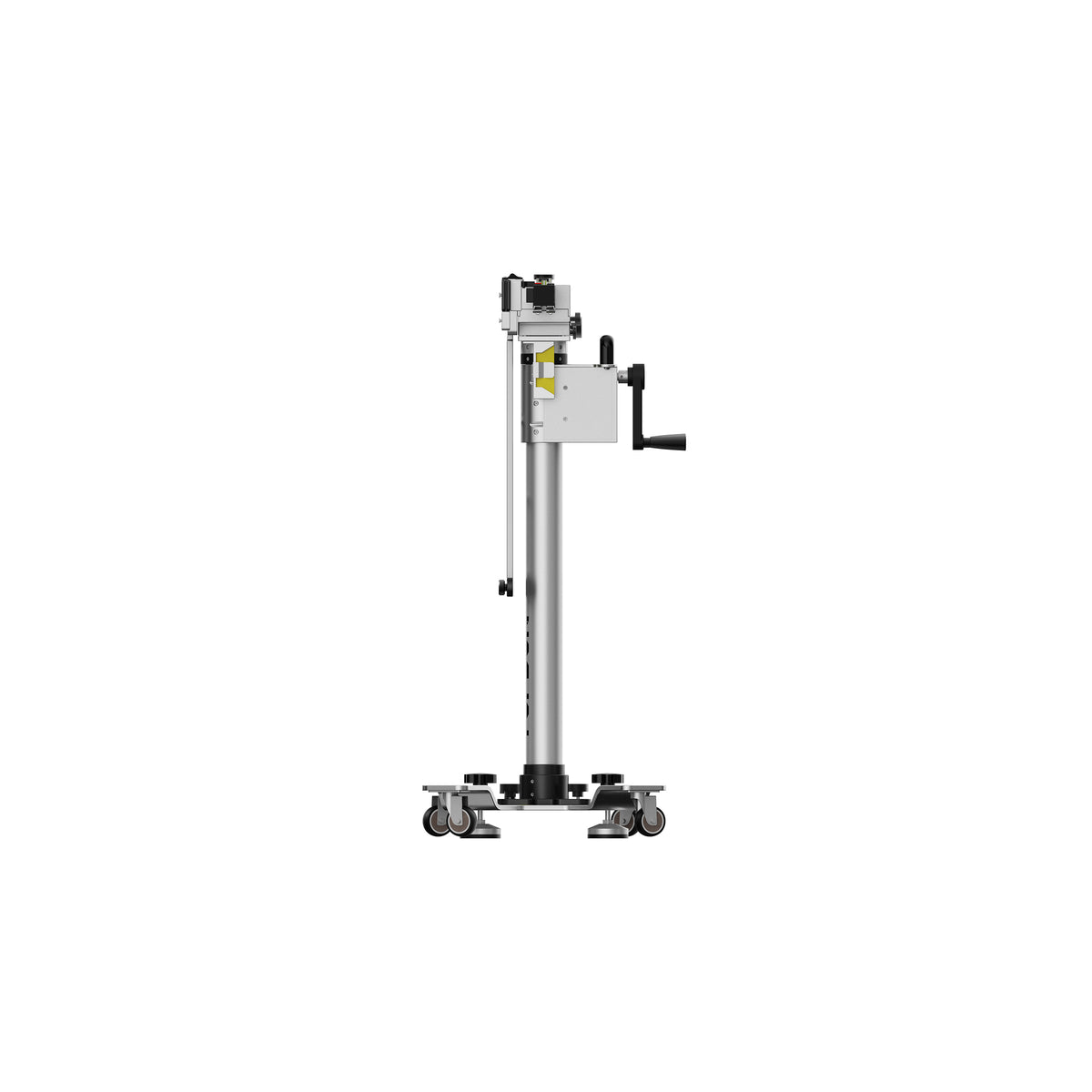

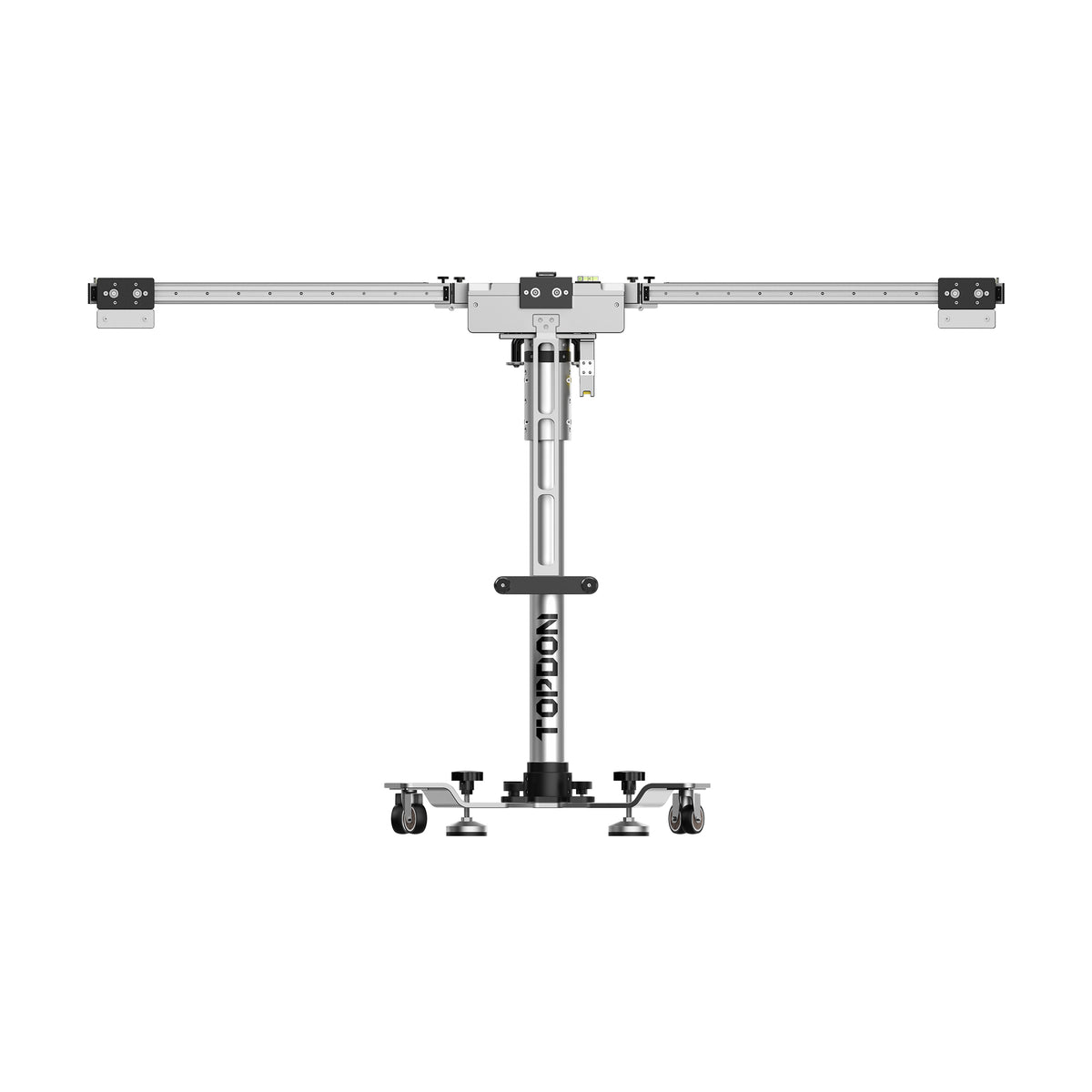

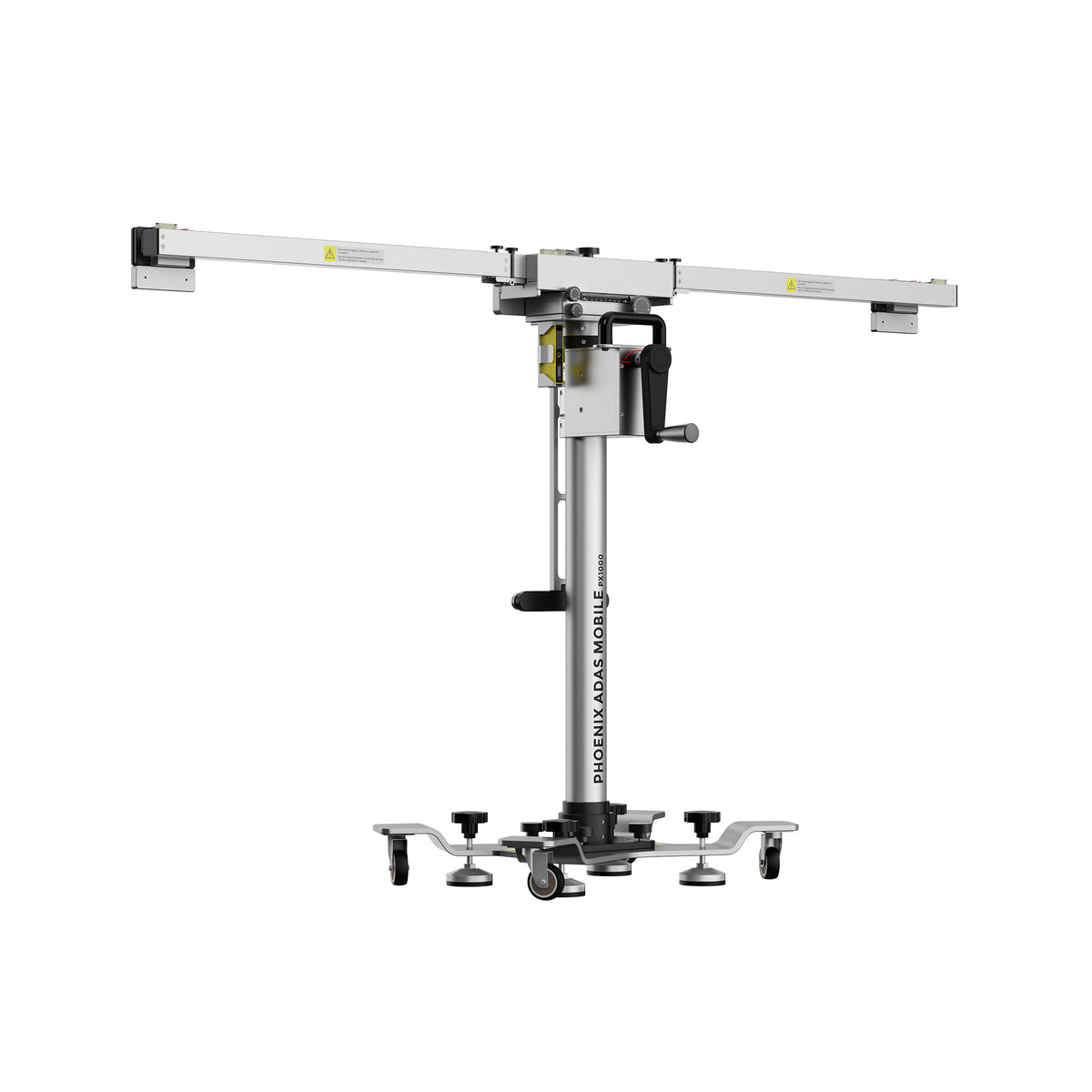

- Phoenix ADAS Mobile calibration frame
- Five-line laser (LAM09-01) and cross laser (LAM09-02)
- Laser reflector (LAM09-03) and auxiliary mirror (LAM09-04)
- L-type positioning bracket (LAM09-05) and plumb bob (LAM09-06)
- Target storage bracket (LAM09-07) and target extension rods I and II (LAM09-08, LAM09-09)
- 7.5 m tape measure and cross-line location stickers
- ADAS Activation Card
Lane Departure Warning (LDW) Targets
- Mercedes-Benz LAM01-01; Mercedes Sprinter LAM01-23-L/R
- Volkswagen/Audi LAM01-02
- Alfa Romeo LAM01-11
- Honda LAM01-04-L/R, LAM01-17, LAM01-20
- Nissan LAM01-07-L/R; Nissan/Renault LAM01-12-L/R
- Mazda LAM01-10, LAM01-16-L/R
- Toyota LAM01-06-1, LAM01-06-2, LAM01-06-3
- Suzuki LAM01-18-L/R; Mitsubishi LAM01-19-L/R
- Hyundai/Kia LAC01-13; Hyundai LAM01-09
- Subaru LAM01-15, LAM01-21
ACC Radar
- ACC reflector (LAM05-02), corner reflector (LAM05-03), Doppler simulator (LAC05-04)
Camera Targets (AVM / RCW / RFK)
- VW AVM LAC04-04, LAC04-14; VW RCW LAC02-03
- Mercedes RCW LAC02-02; Mercedes RFK LAC04-08-01, LAC04-08-02
- Renault AVM LAC04-10-01, LAC04-10-02
- Porsche AVM LAC04-05-1, LAC04-05-2
Night Vision, Lidar, and Radar Level
- VW night vision LAC06-01; Mercedes night vision LAC06-02
- VW lidar target LAC05-06
- Radar level calibration kit LAC07-01, LAC07-02, LAC07-03
- Volvo camera and radar calibration tool LAC07-04
- Protractor board LAC09-04
Optional Targets
Sold separately for this package: Ford, Cadillac, Honda, Mitsubishi, Hyundai, Nissan, and Toyota AVM and RCW targets, and the Honda LaneWatch target.
